Single Acting Aluminum Lock Nut Hydraulic Cylinder

Single Acting Aluminum Lock Nut Hydraulic Cylinder

Item No.: RACL
The Single Acting Aluminum Lock Nut Hydraulic Cylinder is a high-performance industrial hydraulic tool designed for bridge construction, heavy machinery operations, and hydraulic press applications.
Send Inquiry
Description

Taizhou Galaxy Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of single acting aluminum lock nut hydraulic cylinder in China. Please feel free to wholesale cheap single acting aluminum lock nut hydraulic cylinder for sale here from our factory. For price consultation, contact us.



Product Specification



  • Capacity: 20-150ton
  • Stroke: 50-250mm
  • Max.pressure: 700bar



Features & Benefits



  • Aluminum nut lock can mechanically lock the load when the cylinder is extended.
  • The hardened steel retainer extends the service life of the cylinder and prevents 5% side load.
  • Composite support ring can prevent side load and prolong the service life of the cylinder.
  • All cylinders are equipped with handles.
  • Steel base and saddle can prevent damage caused by load.
  • Integrated baffle ring prevents excessive extension of plunger and can withstand maximum lift of cylinder.
  • High strength return spring enables the cylinder to return quickly.
  • All cylinders conform to ASME B-30.1 and ISO10100 standards.

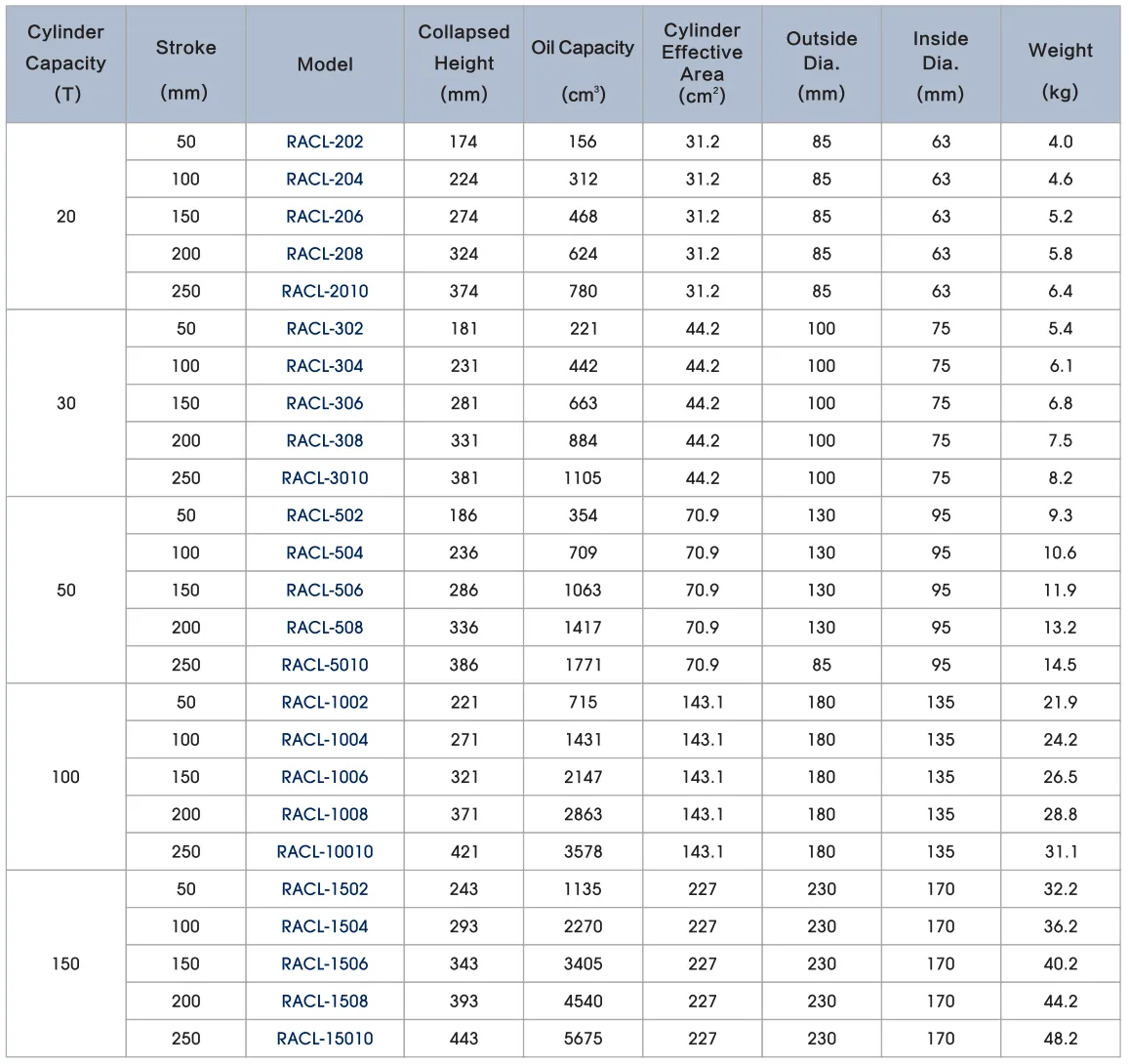

Technical data sheet



product-1-1

Products Description



  • What is the packaging method?                                                      Wooden box packaging
  • What is the delivery time?                                                                 Normal products 7-25days.
  • Does the product itself support OEM customization?                 We support OEM.
